Lecture 10: Ordinary Differential Equations (ODEs)

Computational Physics — Spring 2026

Why ODEs?

Almost every law of physics is a differential equation:

Physics	Equation	Type
Newton’s 2nd law	\(m\ddot{x} = F(x, \dot{x}, t)\)	2nd order ODE
Radioactive decay	\(dN/dt = -\lambda N\)	1st order ODE
Damped oscillator	\(m\ddot{x} + c\dot{x} + kx = 0\)	2nd order ODE
Heat diffusion (1D)	\(\dot{T} = \alpha \, T''\)	PDE → system of ODEs
Crystal lattice vibrations	\(m\ddot{u}_n = K(u_{n+1} - 2u_n + u_{n-1})\)	System of ODEs

import numpy as np
import matplotlib.pyplot as plt
from scipy.integrate import solve_ivp

# Projector-friendly settings
plt.rcParams['figure.figsize'] = [6, 4]
plt.rcParams['font.size'] = 9

print("Ready!")

Ready!

I. What Is an ODE?

An ordinary differential equation relates a function to its derivatives:

\[\frac{dy}{dt} = f(t, y)\]

Given an initial condition \(y(t_0) = y_0\), we want to find \(y(t)\) for \(t > t_0\).

Higher-order ODEs can always be rewritten as a system of first-order ODEs:

\[\begin{split}\ddot{x} = -\omega^2 x \quad \Longrightarrow \quad \begin{cases} \dot{x} = v \\ \dot{v} = -\omega^2 x \end{cases}\end{split}\]

This is the standard form that all numerical solvers expect.

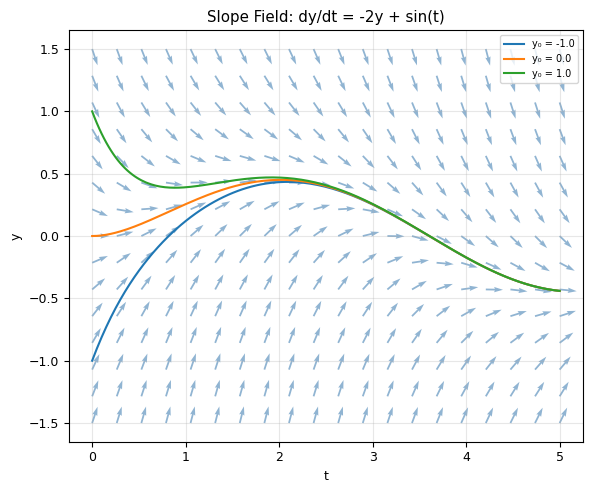

Slope Fields: Visualizing ODEs

Before solving, we can visualize the ODE. At every point \((t, y)\), the derivative \(f(t, y)\) gives the slope.

# Slope field for dy/dt = -2*y + sin(t)
t_grid = np.linspace(0, 5, 20)
y_grid = np.linspace(-1.5, 1.5, 15)
T, Y = np.meshgrid(t_grid, y_grid)

def f_example(t, y):
    return -2 * y + np.sin(t)

dY = f_example(T, Y)
dT = np.ones_like(dY)  # dt component = 1
# Normalize arrows
norm = np.sqrt(dT**2 + dY**2)
dT /= norm
dY /= norm

fig, ax = plt.subplots(figsize=(6, 5))
ax.quiver(T, Y, dT, dY, color='steelblue', alpha=0.6, scale=30)

# Solve and overlay a few trajectories
for y0 in [-1.0, 0.0, 1.0]:
    sol = solve_ivp(f_example, [0, 5], [y0], t_eval=np.linspace(0, 5, 200))
    ax.plot(sol.t, sol.y[0], linewidth=1.5, label=f'y₀ = {y0}')

ax.set_xlabel('t')
ax.set_ylabel('y')
ax.set_title("Slope Field: dy/dt = -2y + sin(t)")
ax.legend(fontsize=7)
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

print("All trajectories follow the arrows and converge to the same attractor!")

All trajectories follow the arrows and converge to the same attractor!

II. The Euler Method

The Simplest Idea

Approximate the derivative with a finite difference:

\[\frac{dy}{dt} \approx \frac{y_{n+1} - y_n}{\Delta t} = f(t_n, y_n)\]

Rearranging:

\[\boxed{y_{n+1} = y_n + \Delta t \cdot f(t_n, y_n)}\]

• Start at \((t_0, y_0)\)

• Compute slope \(f(t_0, y_0)\)

• Take a step: \(y_1 = y_0 + \Delta t \cdot f(t_0, y_0)\)

• Repeat

Error per step: \(O(\Delta t^2)\) → Global error: \(O(\Delta t)\) — first-order method.

def euler(f, t_span, y0, dt):
    """Solve dy/dt = f(t, y) using Euler's method.

    Parameters
    ----------
    f : callable
        Right-hand side function f(t, y).
    t_span : tuple
        (t_start, t_end).
    y0 : array_like
        Initial condition (scalar or array).
    dt : float
        Time step.

    Returns
    -------
    t : ndarray
        Time points.
    y : ndarray
        Solution at each time point.
    """
    t_start, t_end = t_span
    t = np.arange(t_start, t_end + dt/2, dt)
    y0 = np.atleast_1d(np.array(y0, dtype=float))
    y = np.zeros((len(t), len(y0)))
    y[0] = y0

    for i in range(len(t) - 1):
        # y[i+1] =
        # code
        y[i+1] = y[i] + dt * np.array(f(t[i], y[i]))

    return t, y

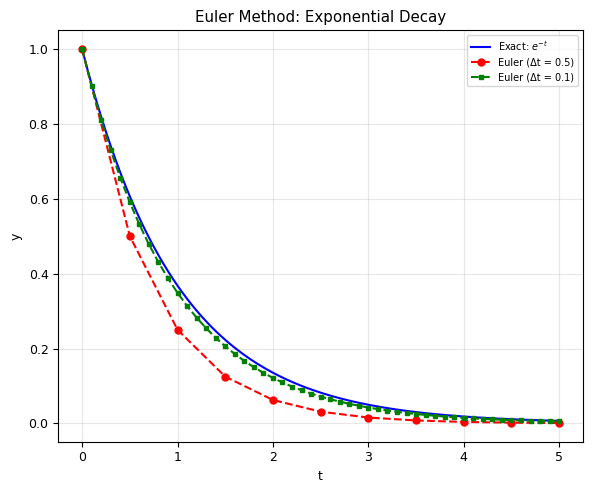

# Test: exponential decay dy/dt = -y, y(0) = 1
# Exact solution: y = e^(-t)
t_euler, y_euler = euler(lambda t, y: -y, [0, 5], [1.0], dt=0.5)
t_exact = np.linspace(0, 5, 200)
y_exact = np.exp(-t_exact)

fig, ax = plt.subplots(figsize=(6, 5))
ax.plot(t_exact, y_exact, 'b-', linewidth=1.5, label='Exact: $e^{-t}$')
ax.plot(t_euler, y_euler[:, 0], 'ro--', markersize=5, label='Euler (Δt = 0.5)')

# Also show smaller dt
t_e2, y_e2 = euler(lambda t, y: -y, [0, 5], [1.0], dt=0.1)
ax.plot(t_e2, y_e2[:, 0], 'gs--', markersize=3, label='Euler (Δt = 0.1)')

ax.set_xlabel('t')
ax.set_ylabel('y')
ax.set_title('Euler Method: Exponential Decay')
ax.legend(fontsize=7)
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

print(f"Error at t=5 (Δt=0.5): {abs(y_euler[-1, 0] - np.exp(-5)):.4f}")
print(f"Error at t=5 (Δt=0.1): {abs(y_e2[-1, 0] - np.exp(-5)):.4f}")
print(f"Ratio: {abs(y_euler[-1, 0] - np.exp(-5)) / abs(y_e2[-1, 0] - np.exp(-5)):.1f}x  (5x smaller Δt → ~5x smaller error)")

Error at t=5 (Δt=0.5): 0.0058
Error at t=5 (Δt=0.1): 0.0016
Ratio: 3.6x  (5x smaller Δt → ~5x smaller error)

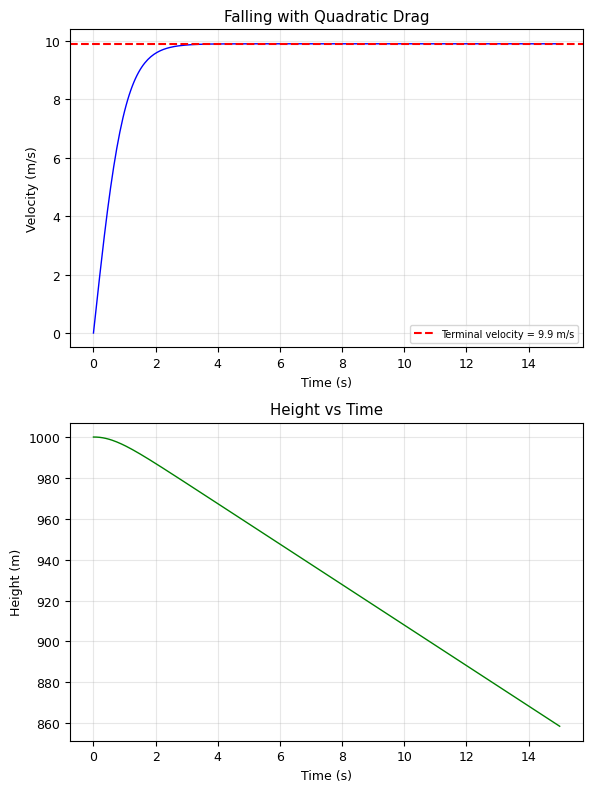

Application: Falling with Air Drag

A falling object with quadratic drag:

\[m\dot{v} = mg - bv^2 \quad \Rightarrow \quad \dot{v} = g - \frac{b}{m}v^2\]

Terminal velocity: \(v_T = \sqrt{mg/b}\) when \(\dot{v} = 0\).

# Falling with quadratic drag
g = 9.81   # m/s^2
b_over_m = 0.1  # drag coefficient / mass
v_terminal = np.sqrt(g / b_over_m)

def falling_drag(t, y):
    """y = [height, velocity]. Positive v = downward."""
    h, v = y
    dhdt = -v           # height decreases as we fall
    dvdt = g - b_over_m * v**2  # gravity - drag
    return [dhdt, dvdt]

# Solve with Euler
t_fall, y_fall = euler(falling_drag, [0, 15], [1000, 0], dt=0.05)

fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(6, 8))

ax1.plot(t_fall, y_fall[:, 1], 'b-', linewidth=1)
ax1.axhline(v_terminal, color='r', linestyle='--', label=f'Terminal velocity = {v_terminal:.1f} m/s')
ax1.set_xlabel('Time (s)')
ax1.set_ylabel('Velocity (m/s)')
ax1.set_title('Falling with Quadratic Drag')
ax1.legend(fontsize=7)
ax1.grid(True, alpha=0.3)

ax2.plot(t_fall, y_fall[:, 0], 'g-', linewidth=1)
ax2.set_xlabel('Time (s)')
ax2.set_ylabel('Height (m)')
ax2.set_title('Height vs Time')
ax2.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

print(f"Velocity approaches terminal velocity v_T = {v_terminal:.1f} m/s")
print(f"After ~5 time constants: v ≈ v_T")

Velocity approaches terminal velocity v_T = 9.9 m/s
After ~5 time constants: v ≈ v_T

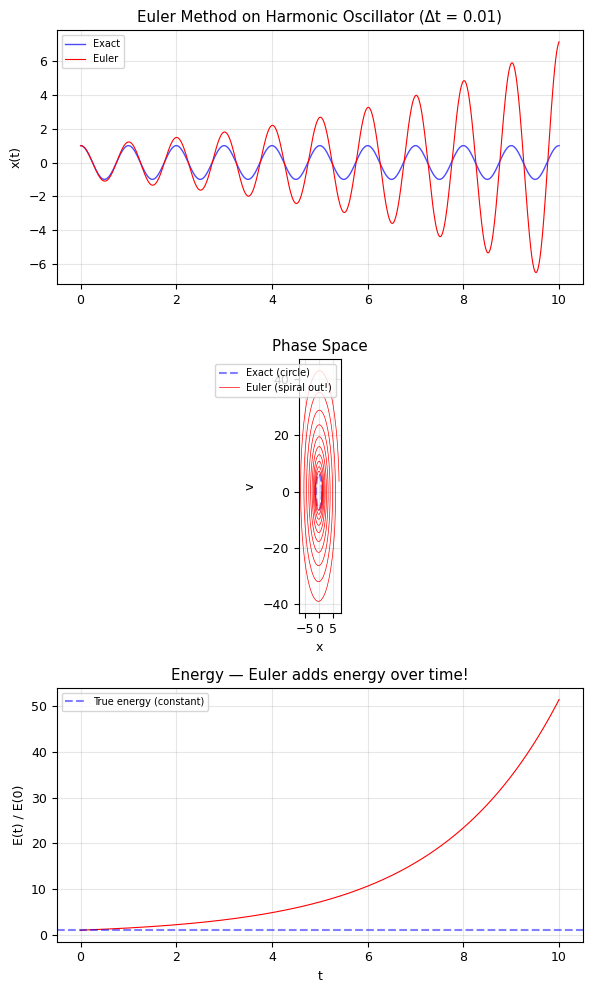

III. Euler Fails for Oscillators!

The Simple Harmonic Oscillator

\[\begin{split}\ddot{x} = -\omega^2 x \quad \Rightarrow \quad \begin{cases} \dot{x} = v \\ \dot{v} = -\omega^2 x \end{cases}\end{split}\]

Energy should be conserved: \(E = \frac{1}{2}v^2 + \frac{1}{2}\omega^2 x^2 = \text{const}\)

Let’s see what Euler does…

# Simple harmonic oscillator with Euler
omega = 2 * np.pi  # angular frequency (1 Hz)

def sho(t, y):
    """Simple harmonic oscillator: y = [x, v]."""
    x, v = y
    return [v, -omega**2 * x]

dt = 0.01
t_sho, y_sho = euler(sho, [0, 10], [1.0, 0.0], dt=dt)

# Exact solution
x_exact = np.cos(omega * t_sho)
energy = 0.5 * y_sho[:, 1]**2 + 0.5 * omega**2 * y_sho[:, 0]**2

fig, axes = plt.subplots(3, 1, figsize=(6, 10))

# Position
axes[0].plot(t_sho, x_exact, 'b-', linewidth=1, label='Exact', alpha=0.7)
axes[0].plot(t_sho, y_sho[:, 0], 'r-', linewidth=0.8, label='Euler')
axes[0].set_ylabel('x(t)')
axes[0].set_title(f'Euler Method on Harmonic Oscillator (Δt = {dt})')
axes[0].legend(fontsize=7)
axes[0].grid(True, alpha=0.3)

# Phase space
theta = np.linspace(0, 2*np.pi, 100)
axes[1].plot(np.cos(theta), -omega*np.sin(theta), 'b--', alpha=0.5, label='Exact (circle)')
axes[1].plot(y_sho[:, 0], y_sho[:, 1], 'r-', linewidth=0.5, label='Euler (spiral out!)')
axes[1].set_xlabel('x')
axes[1].set_ylabel('v')
axes[1].set_title('Phase Space')
axes[1].set_aspect('equal')
axes[1].legend(fontsize=7)
axes[1].grid(True, alpha=0.3)

# Energy
axes[2].plot(t_sho, energy / energy[0], 'r-', linewidth=0.8)
axes[2].axhline(1.0, color='b', linestyle='--', alpha=0.5, label='True energy (constant)')
axes[2].set_xlabel('t')
axes[2].set_ylabel('E(t) / E(0)')
axes[2].set_title('Energy — Euler adds energy over time!')
axes[2].legend(fontsize=7)
axes[2].grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

print(f"Energy after 10 periods: {energy[-1]/energy[0]:.2f}x initial — Euler GAINS energy!")
print("The phase-space orbit spirals OUTWARD. This is unphysical.")

Energy after 10 periods: 51.42x initial — Euler GAINS energy!
The phase-space orbit spirals OUTWARD. This is unphysical.

The Problem

Euler uses the old position to update both position and velocity simultaneously:

\[x_{n+1} = x_n + \Delta t \cdot v_n\]

\[v_{n+1} = v_n + \Delta t \cdot a(x_n)\]

Both updates use data from time \(t_n\). For oscillators, this systematically adds energy at every step.

IV. The Euler-Cromer (Symplectic) Method

Simple fix: update velocity first, then use the new velocity to update position:

\[v_{n+1} = v_n + \Delta t \cdot a(x_n)\]

\[x_{n+1} = x_n + \Delta t \cdot v_{n+1} \quad \leftarrow \text{uses updated } v\]

This is a symplectic integrator — it preserves the geometric structure of Hamiltonian mechanics. Energy oscillates around the true value instead of drifting.

def euler_cromer(t_span, x0, v0, a_func, dt):
    """Solve x'' = a(x, v, t) using the Euler-Cromer (symplectic) method.

    Parameters
    ----------
    t_span : tuple
        (t_start, t_end).
    x0, v0 : float
        Initial position and velocity.
    a_func : callable
        Acceleration function a(x, v, t).
    dt : float
        Time step.

    Returns
    -------
    t, x, v : ndarrays
    """
    t = np.arange(t_span[0], t_span[1] + dt/2, dt)
    x = np.zeros(len(t))
    v = np.zeros(len(t))
    x[0], v[0] = x0, v0

    for i in range(len(t) - 1):
        v[i+1] = v[i] + dt * a_func(x[i], v[i], t[i])       # Update v FIRST
        x[i+1] = x[i] + dt * v[i+1]                  # Use NEW v

    return t, x, v

# Compare Euler vs Euler-Cromer on SHO
a_sho = lambda x, v, t: -omega**2 * x

t_ec, x_ec, v_ec = euler_cromer([0, 10], 1.0, 0.0, a_sho, dt=0.01)
energy_ec = 0.5 * v_ec**2 + 0.5 * omega**2 * x_ec**2

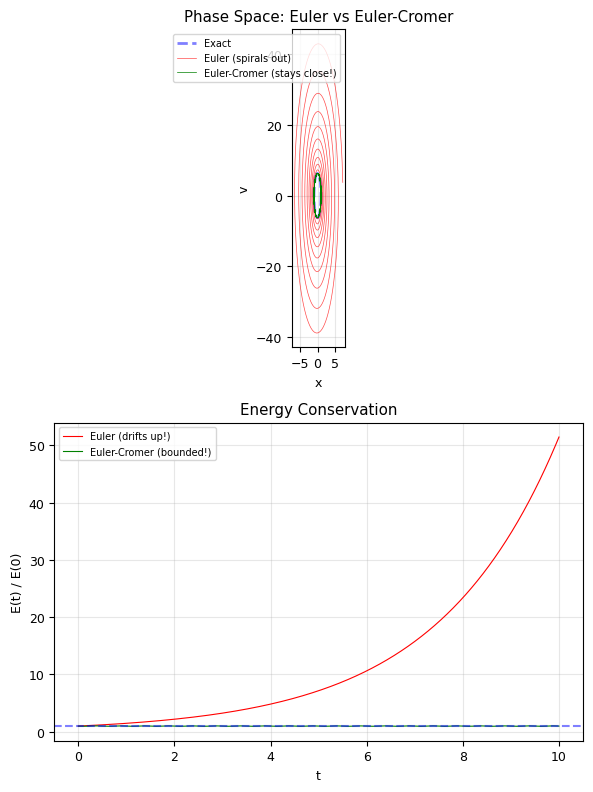

fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(6, 8))

# Phase space comparison
ax1.plot(np.cos(theta), -omega*np.sin(theta), 'b--', alpha=0.5, linewidth=2, label='Exact')
ax1.plot(y_sho[:, 0], y_sho[:, 1], 'r-', linewidth=0.5, alpha=0.7, label='Euler (spirals out)')
ax1.plot(x_ec, v_ec, 'g-', linewidth=0.5, label='Euler-Cromer (stays close!)')
ax1.set_xlabel('x')
ax1.set_ylabel('v')
ax1.set_title('Phase Space: Euler vs Euler-Cromer')
ax1.set_aspect('equal')
ax1.legend(fontsize=7)
ax1.grid(True, alpha=0.3)

# Energy comparison
ax2.plot(t_sho, energy / energy[0], 'r-', linewidth=0.8, label='Euler (drifts up!)')
ax2.plot(t_ec, energy_ec / energy_ec[0], 'g-', linewidth=0.8, label='Euler-Cromer (bounded!)')
ax2.axhline(1.0, color='b', linestyle='--', alpha=0.5)
ax2.set_xlabel('t')
ax2.set_ylabel('E(t) / E(0)')
ax2.set_title('Energy Conservation')
ax2.legend(fontsize=7)
ax2.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

print(f"Euler energy drift after 10 periods: {energy[-1]/energy[0]:.4f}")
print(f"Euler-Cromer energy after 10 periods: {energy_ec[-1]/energy_ec[0]:.6f}")
print("\nEuler-Cromer oscillates around E=1 but never drifts — symplectic!")

Euler energy drift after 10 periods: 51.4222
Euler-Cromer energy after 10 periods: 0.999350

Euler-Cromer oscillates around E=1 but never drifts — symplectic!

Why Symplectic Matters

Method	Energy behavior	Best for
Euler	Drifts (grows)	Short simulations, dissipative systems
Euler-Cromer	Bounded oscillation	Long-time Hamiltonian dynamics
Verlet / Leapfrog	Bounded, 2nd order	Molecular dynamics (we’ll see later)

Molecular dynamics simulations of millions of atoms for nanoseconds require symplectic integrators.

V. The Runge-Kutta Method (RK4)

Euler uses the slope at one point. RK4 samples the slope at four points per step:

\[k_1 = f(t_n, y_n)\]

\[k_2 = f\!\left(t_n + \frac{\Delta t}{2}, \; y_n + \frac{\Delta t}{2} k_1\right)\]

\[k_3 = f\!\left(t_n + \frac{\Delta t}{2}, \; y_n + \frac{\Delta t}{2} k_2\right)\]

\[k_4 = f(t_n + \Delta t, \; y_n + \Delta t \, k_3)\]

\[\boxed{y_{n+1} = y_n + \frac{\Delta t}{6}(k_1 + 2k_2 + 2k_3 + k_4)}\]

Global error: \(O(\Delta t^4)\) — fourth-order method. 4× the work per step, but much more accurate.

def rk4(f, t_span, y0, dt):
    """Solve dy/dt = f(t, y) using the classic Runge-Kutta 4th order method.

    Parameters
    ----------
    f : callable
        Right-hand side f(t, y).
    t_span : tuple
        (t_start, t_end).
    y0 : array_like
        Initial condition.
    dt : float
        Time step.

    Returns
    -------
    t, y : ndarrays
    """
    t_start, t_end = t_span
    t = np.arange(t_start, t_end + dt/2, dt)
    y0 = np.atleast_1d(np.array(y0, dtype=float))
    y = np.zeros((len(t), len(y0)))
    y[0] = y0

    for i in range(len(t) - 1):
        k1 = np.array(f(t[i], y[i]))
        k2 = np.array(f(t[i] + dt/2, y[i] + dt/2 * k1))
        k3 = np.array(f(t[i] + dt/2, y[i] + dt/2 * k2))
        k4 = np.array(f(t[i] + dt, y[i] + dt * k3))
        y[i+1] = y[i] + dt/6 * (k1 + 2*k2 + 2*k3 + k4)

    return t, y

# Compare Euler vs RK4 on the SHO
dt_compare = 0.05  # Larger step to show the difference

t_e, y_e = euler(sho, [0, 2], [1.0, 0.0], dt=dt_compare)
t_r, y_r = rk4(sho, [0, 2], [1.0, 0.0], dt=dt_compare)
x_exact_c = np.cos(omega * t_e)

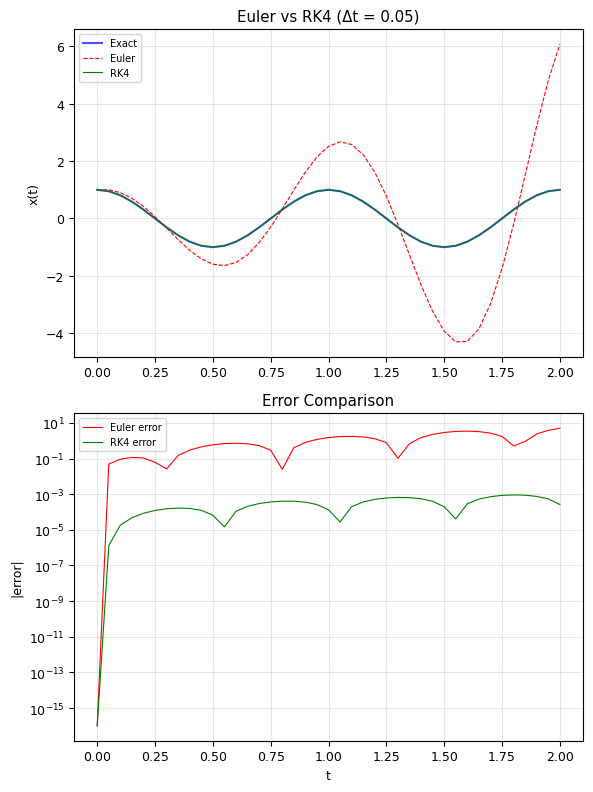

fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(6, 8))

ax1.plot(t_e, x_exact_c, 'b-', linewidth=1.5, label='Exact', alpha=0.7)
ax1.plot(t_e, y_e[:, 0], 'r--', linewidth=0.8, label='Euler')
ax1.plot(t_r, y_r[:, 0], 'g-', linewidth=0.8, label='RK4')
ax1.set_ylabel('x(t)')
ax1.set_title(f'Euler vs RK4 (Δt = {dt_compare})')
ax1.legend(fontsize=7)
ax1.grid(True, alpha=0.3)

# Error comparison
err_euler = np.abs(y_e[:, 0] - np.cos(omega * t_e))
err_rk4 = np.abs(y_r[:, 0] - np.cos(omega * t_r))

ax2.semilogy(t_e, err_euler + 1e-16, 'r-', linewidth=0.8, label='Euler error')
ax2.semilogy(t_r, err_rk4 + 1e-16, 'g-', linewidth=0.8, label='RK4 error')
ax2.set_xlabel('t')
ax2.set_ylabel('|error|')
ax2.set_title('Error Comparison')
ax2.legend(fontsize=7)
ax2.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

print(f"Euler error at t=10: {err_euler[-1]:.4f}")
print(f"RK4 error at t=10:   {err_rk4[-1]:.2e}")
print(f"RK4 is ~{err_euler[-1]/max(err_rk4[-1], 1e-16):.0f}× more accurate with the same Δt!")

Euler error at t=10: 5.0751
RK4 error at t=10:   2.64e-04
RK4 is ~19209× more accurate with the same Δt!

Method Comparison Summary

Method	Order	Error per step	Evaluations per step	Best for
Euler	1st	\(O(\Delta t^2)\)	1	Learning, simple problems
Euler-Cromer	1st	\(O(\Delta t^2)\)	1	Long-time Hamiltonian dynamics
RK4	4th	\(O(\Delta t^5)\)	4	General-purpose ODE solving
RK45 (adaptive)	4th–5th	Automatic	6	Production code (solve_ivp)

VI. The Professional Tool: scipy.integrate.solve_ivp

In practice, we use scipy’s adaptive solver. It automatically:

• Adjusts the step size for accuracy

• Uses embedded error estimates (RK45: 4th and 5th order)

• Handles stiff equations (with method='Radau' or 'BDF')

sol = solve_ivp(f, t_span, y0, t_eval=t_points, method='RK45')
## sol.t = time points
## sol.y = solution (shape: n_variables × n_timepoints)

# Damped harmonic oscillator with solve_ivp
# m*x'' + c*x' + k*x = 0  →  x'' = -(c/m)*v - (k/m)*x

def damped_oscillator(t, y, gamma, omega0):
    """Damped harmonic oscillator.

    Parameters
    ----------
    gamma : float
        Damping coefficient c/(2m).
    omega0 : float
        Natural frequency sqrt(k/m).
    """
    x, v = y
    return [v, -2*gamma*v - omega0**2 * x]

omega0 = 2 * np.pi  # natural frequency
t_eval = np.linspace(0, 5, 500)

# Three damping regimes
cases = {
    'Underdamped (ζ=0.1)': 0.1 * omega0,
    'Critically damped (ζ=1)': 1.0 * omega0,
    'Overdamped (ζ=2)': 2.0 * omega0
}

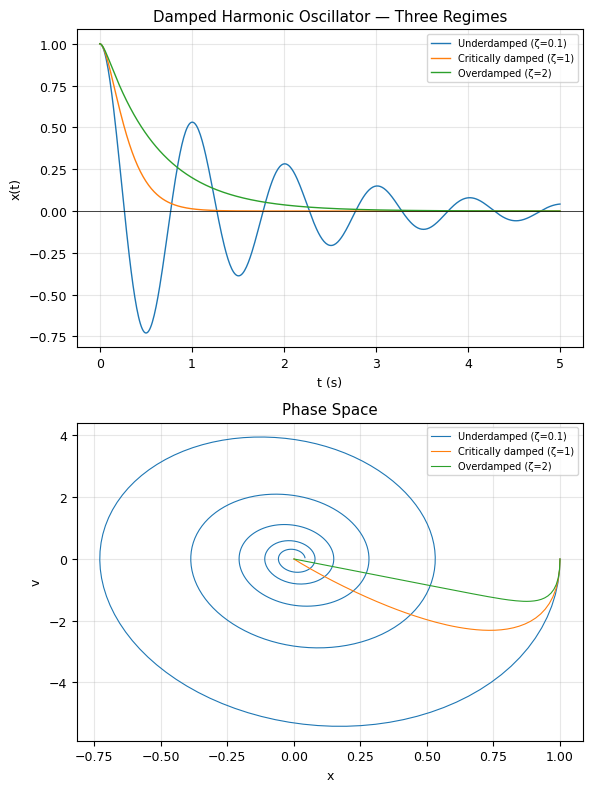

fig, (ax1, ax2) = plt.subplots(2, 1, figsize=(6, 8))

for label, gamma in cases.items():
    sol = solve_ivp(damped_oscillator, [0, 5], [1.0, 0.0],
                    t_eval=t_eval, args=(gamma, omega0))
    ax1.plot(sol.t, sol.y[0], linewidth=1, label=label)
    ax2.plot(sol.y[0], sol.y[1], linewidth=0.8, label=label)

ax1.set_xlabel('t (s)')
ax1.set_ylabel('x(t)')
ax1.set_title('Damped Harmonic Oscillator — Three Regimes')
ax1.axhline(0, color='k', linewidth=0.5)
ax1.legend(fontsize=7)
ax1.grid(True, alpha=0.3)

ax2.set_xlabel('x')
ax2.set_ylabel('v')
ax2.set_title('Phase Space')
ax2.legend(fontsize=7)
ax2.grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

print("ζ < 1: Underdamped — oscillates with decaying envelope")
print("ζ = 1: Critically damped — fastest return to equilibrium without oscillation")
print("ζ > 1: Overdamped — slow return, no oscillation")

ζ < 1: Underdamped — oscillates with decaying envelope
ζ = 1: Critically damped — fastest return to equilibrium without oscillation
ζ > 1: Overdamped — slow return, no oscillation

VII. Physics Application: Phonons in a 1D Crystal

The Monatomic Chain

A chain of \(N\) atoms connected by springs (nearest-neighbor interaction):

\[m \ddot{u}_n = K(u_{n+1} - 2u_n + u_{n-1})\]

where \(u_n\) is the displacement of atom \(n\) from equilibrium.

This is a system of \(N\) coupled ODEs — a perfect test for our methods!

Analytical Dispersion Relation

\[\omega(k) = 2\sqrt{\frac{K}{m}} \left|\sin\left(\frac{ka}{2}\right)\right|\]

where \(a\) is the lattice spacing and \(k\) is the wavevector.

# 1D monatomic chain — phonon simulation
N_atoms = 32      # Number of atoms
K = 1.0           # Spring constant
m = 1.0           # Atom mass
a = 1.0           # Lattice spacing

def monatomic_chain(t, y):
    """Equations of motion for 1D monatomic chain.

    y = [u_0, u_1, ..., u_{N-1}, v_0, v_1, ..., v_{N-1}]
    Periodic boundary conditions.
    """
    u = y[:N_atoms]       # Displacements
    v = y[N_atoms:]       # Velocities

    # Acceleration: a_n = (K/m) * (u_{n+1} - 2*u_n + u_{n-1})
    # Periodic BC: u[-1] = u[N-1], u[N] = u[0]
    u_right = np.roll(u, -1)  # u_{n+1}
    u_left = np.roll(u, 1)    # u_{n-1}
    acc = (K / m) * (u_right - 2*u + u_left)

    return np.concatenate([v, acc])

# Initial condition: single atom displaced (impulse)
u0 = np.zeros(N_atoms)
u0[N_atoms // 2] = 1.0  # Displace the middle atom
v0 = np.zeros(N_atoms)
y0_chain = np.concatenate([u0, v0])

# Solve
T_sim = 40
t_eval_chain = np.linspace(0, T_sim, 500)
sol_chain = solve_ivp(monatomic_chain, [0, T_sim], y0_chain,
                       t_eval=t_eval_chain, method='RK45', rtol=1e-8)

# Extract displacements
U = sol_chain.y[:N_atoms, :]

# Plot as heatmap: atom index vs time

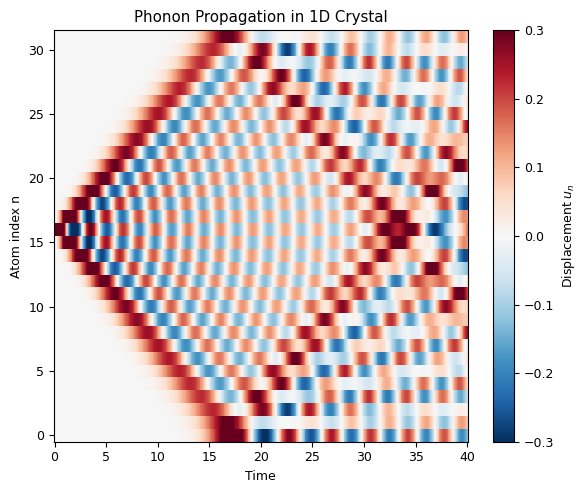

fig, ax = plt.subplots(figsize=(6, 5))
im = ax.pcolormesh(sol_chain.t, np.arange(N_atoms), U,
                    cmap='RdBu_r', shading='auto', vmin=-0.3, vmax=0.3)
plt.colorbar(im, ax=ax, label='Displacement $u_n$')
ax.set_xlabel('Time')
ax.set_ylabel('Atom index n')
ax.set_title('Phonon Propagation in 1D Crystal')
plt.tight_layout()
plt.show()

print("A single displaced atom → waves propagate outward in both directions!")
print("Periodic BC: waves wrap around and interfere.")

A single displaced atom → waves propagate outward in both directions!
Periodic BC: waves wrap around and interfere.

# Extract the dispersion relation from the simulation using 2D FFT!
# FFT in space → wavevector k
# FFT in time → frequency ω

# Use a longer, finer simulation for better resolution
T_long = 100
N_time = 2048
t_fine = np.linspace(0, T_long, N_time)

# Random initial displacements to excite all modes
np.random.seed(42)
u0_rand = 0.1 * np.random.randn(N_atoms)
v0_rand = 0.1 * np.random.randn(N_atoms)
y0_rand = np.concatenate([u0_rand, v0_rand])

sol_long = solve_ivp(monatomic_chain, [0, T_long], y0_rand,
                      t_eval=t_fine, method='RK45', rtol=1e-8)
U_long = sol_long.y[:N_atoms, :]

# 2D FFT: space-time → (k, ω)
F_2d = np.fft.fft2(U_long)
power = np.abs(np.fft.fftshift(F_2d))**2

# Frequency and wavevector axes
dk = 2 * np.pi / (N_atoms * a)
k_axis = np.fft.fftshift(np.fft.fftfreq(N_atoms, d=a)) * 2 * np.pi
dt_sim = T_long / N_time
omega_axis = np.fft.fftshift(np.fft.fftfreq(N_time, d=dt_sim)) * 2 * np.pi

# Analytical dispersion
k_theory = np.linspace(-np.pi/a, np.pi/a, 200)
omega_theory = 2 * np.sqrt(K/m) * np.abs(np.sin(k_theory * a / 2))

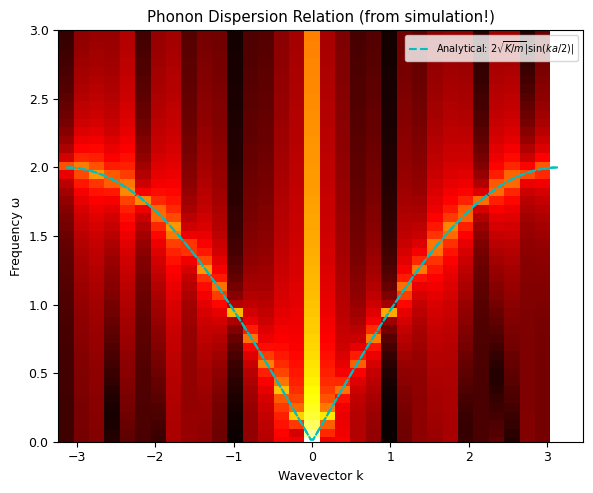

fig, ax = plt.subplots(figsize=(6, 5))
# Only show positive frequencies
omega_pos = omega_axis >= 0
ax.pcolormesh(k_axis, omega_axis[omega_pos],
              np.log10(power[:, omega_pos].T + 1),
              cmap='hot', shading='auto')

ax.plot(k_theory, omega_theory, 'c--', linewidth=1.5, label='Analytical: $2\sqrt{K/m}|\sin(ka/2)|$')
ax.plot(-k_theory, omega_theory, 'c--', linewidth=1.5)

ax.set_xlabel('Wavevector k')
ax.set_ylabel('Frequency ω')
ax.set_title('Phonon Dispersion Relation (from simulation!)')
ax.set_ylim(0, 3)
ax.legend(fontsize=7)
plt.tight_layout()
plt.show()

print("Bright bands = normal modes of the crystal.")
print("Cyan dashed = analytical dispersion relation.")
print("They match! We recovered the phonon spectrum from a simulation.")

<>:41: SyntaxWarning: invalid escape sequence '\s'
<>:41: SyntaxWarning: invalid escape sequence '\s'
/tmp/ipython-input-432/3103749938.py:41: SyntaxWarning: invalid escape sequence '\s'
  ax.plot(k_theory, omega_theory, 'c--', linewidth=1.5, label='Analytical: $2\sqrt{K/m}|\sin(ka/2)|$')

Bright bands = normal modes of the crystal.
Cyan dashed = analytical dispersion relation.
They match! We recovered the phonon spectrum from a simulation.

VIII. Physics Application: Diatomic Chain (Optical & Acoustic Phonons)

A chain with two different atom masses (\(m_1\), \(m_2\)) alternating:

\[m_1 \ddot{u}_{2n} = K(u_{2n+1} - 2u_{2n} + u_{2n-1})\]

\[m_2 \ddot{u}_{2n+1} = K(u_{2n+2} - 2u_{2n+1} + u_{2n})\]

This creates two branches:

• Acoustic branch (low ω): atoms move in phase

• Optical branch (high ω): atoms move out of phase

• Band gap between them: no propagating modes!

# Diatomic chain simulation
N_cells = 16         # Unit cells (total 32 atoms)
N_total = 2 * N_cells
m1 = 1.0             # Light atom
m2 = 3.0             # Heavy atom
K_di = 1.0

# Mass array: alternating m1, m2, m1, m2, ...
masses = np.zeros(N_total)
masses[0::2] = m1
masses[1::2] = m2

def diatomic_chain(t, y):
    """Equations of motion for 1D diatomic chain with periodic BC."""
    u = y[:N_total]
    v = y[N_total:]
    u_right = np.roll(u, -1)
    u_left = np.roll(u, 1)
    acc = (K_di / masses) * (u_right - 2*u + u_left)
    return np.concatenate([v, acc])

# Random initial conditions to excite all modes
np.random.seed(123)
u0_di = 0.1 * np.random.randn(N_total)
v0_di = 0.1 * np.random.randn(N_total)
y0_di = np.concatenate([u0_di, v0_di])

T_di = 200
N_time_di = 4096
t_di = np.linspace(0, T_di, N_time_di)
sol_di = solve_ivp(diatomic_chain, [0, T_di], y0_di,
                    t_eval=t_di, method='RK45', rtol=1e-8)
U_di = sol_di.y[:N_total, :]

# 2D FFT to get dispersion
F_di = np.fft.fft2(U_di)
power_di = np.abs(np.fft.fftshift(F_di))**2

k_di_axis = np.fft.fftshift(np.fft.fftfreq(N_total, d=a/2)) * 2 * np.pi
dt_di = T_di / N_time_di
omega_di_axis = np.fft.fftshift(np.fft.fftfreq(N_time_di, d=dt_di)) * 2 * np.pi

# Analytical dispersion for diatomic chain
k_th = np.linspace(0, np.pi / a, 200)
# ω² = K(1/m1 + 1/m2) ± K*sqrt((1/m1+1/m2)² - 4sin²(ka/2)/(m1*m2))
sum_inv = 1/m1 + 1/m2
omega_sq_plus = K_di * (sum_inv + np.sqrt(sum_inv**2 - 4*np.sin(k_th*a/2)**2/(m1*m2)))
omega_sq_minus = K_di * (sum_inv - np.sqrt(sum_inv**2 - 4*np.sin(k_th*a/2)**2/(m1*m2)))
omega_optical = np.sqrt(omega_sq_plus)
omega_acoustic = np.sqrt(omega_sq_minus)

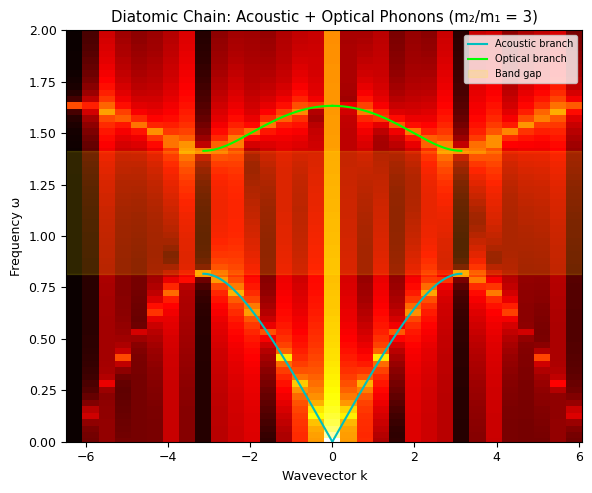

fig, ax = plt.subplots(figsize=(6, 5))
omega_pos_di = omega_di_axis >= 0
ax.pcolormesh(k_di_axis, omega_di_axis[omega_pos_di],
              np.log10(power_di[:, omega_pos_di].T + 1),
              cmap='hot', shading='auto')

ax.plot(k_th, omega_acoustic, 'c-', linewidth=1.5, label='Acoustic branch')
ax.plot(-k_th, omega_acoustic, 'c-', linewidth=1.5)
ax.plot(k_th, omega_optical, 'lime', linewidth=1.5, label='Optical branch')
ax.plot(-k_th, omega_optical, 'lime', linewidth=1.5)

# Band gap
omega_gap_low = np.sqrt(2*K_di/m2)
omega_gap_high = np.sqrt(2*K_di/m1)
ax.axhspan(omega_gap_low, omega_gap_high, alpha=0.15, color='yellow', label='Band gap')

ax.set_xlabel('Wavevector k')
ax.set_ylabel('Frequency ω')
ax.set_title(f'Diatomic Chain: Acoustic + Optical Phonons (m₂/m₁ = {m2/m1:.0f})')
ax.set_ylim(0, 2.0)
ax.legend(fontsize=7, loc='upper right')
plt.tight_layout()
plt.show()

print(f"Band gap: ω = {omega_gap_low:.3f} to {omega_gap_high:.3f}")
print(f"No propagating modes in the gap — this is why some crystals are transparent!")
print(f"The mass ratio m2/m1 = {m2/m1:.0f} controls the gap width.")

Band gap: ω = 0.816 to 1.414
No propagating modes in the gap — this is why some crystals are transparent!
The mass ratio m2/m1 = 3 controls the gap width.

IX. Physics Application: Nonlinear Pendulum

The full pendulum equation (not the small-angle approximation):

\[\ddot{\theta} = -\frac{g}{L} \sin\theta\]

For small \(\theta\): \(\sin\theta \approx \theta\) → SHO. For large \(\theta\): the period depends on amplitude!

# Nonlinear pendulum: compare small-angle vs full equation
g_pend = 9.81
L_pend = 1.0

def pendulum_full(t, y):
    theta, omega_p = y
    return [omega_p, -(g_pend/L_pend) * np.sin(theta)]

def pendulum_linear(t, y):
    theta, omega_p = y
    return [omega_p, -(g_pend/L_pend) * theta]

t_pend = np.linspace(0, 10, 1000)

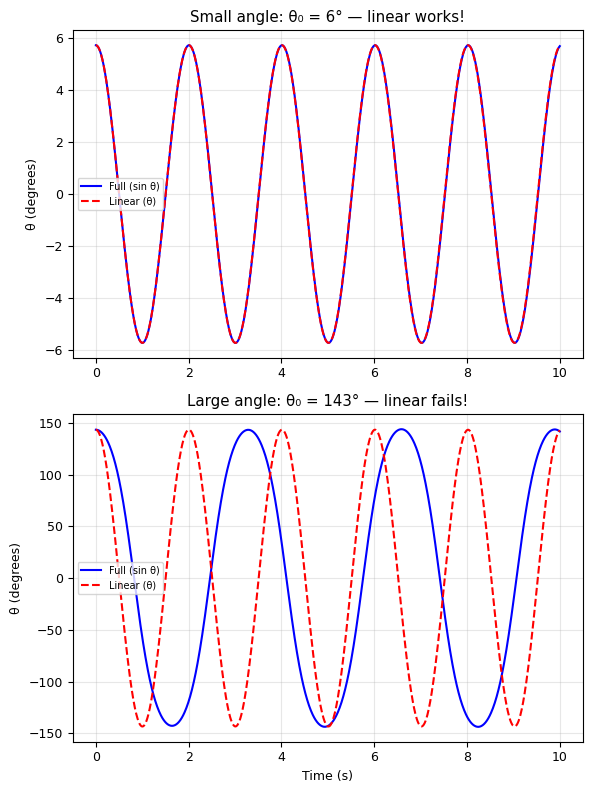

fig, axes = plt.subplots(2, 1, figsize=(6, 8))

# Small angle: linear ≈ nonlinear
theta0_small = 0.1  # ~6°
sol_full_s = solve_ivp(pendulum_full, [0, 10], [theta0_small, 0], t_eval=t_pend)
sol_lin_s = solve_ivp(pendulum_linear, [0, 10], [theta0_small, 0], t_eval=t_pend)

axes[0].plot(sol_full_s.t, np.degrees(sol_full_s.y[0]), 'b-', label='Full (sin θ)')
axes[0].plot(sol_lin_s.t, np.degrees(sol_lin_s.y[0]), 'r--', label='Linear (θ)')
axes[0].set_title(f'Small angle: θ₀ = {np.degrees(theta0_small):.0f}° — linear works!')
axes[0].set_ylabel('θ (degrees)')
axes[0].legend(fontsize=7)
axes[0].grid(True, alpha=0.3)

# Large angle: linear fails
theta0_large = 2.5  # ~143°
sol_full_l = solve_ivp(pendulum_full, [0, 10], [theta0_large, 0], t_eval=t_pend)
sol_lin_l = solve_ivp(pendulum_linear, [0, 10], [theta0_large, 0], t_eval=t_pend)

axes[1].plot(sol_full_l.t, np.degrees(sol_full_l.y[0]), 'b-', label='Full (sin θ)')
axes[1].plot(sol_lin_l.t, np.degrees(sol_lin_l.y[0]), 'r--', label='Linear (θ)')
axes[1].set_title(f'Large angle: θ₀ = {np.degrees(theta0_large):.0f}° — linear fails!')
axes[1].set_xlabel('Time (s)')
axes[1].set_ylabel('θ (degrees)')
axes[1].legend(fontsize=7)
axes[1].grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

# Measure periods
# Find zero-crossings of the full solution
from scipy.signal import find_peaks
peaks, _ = find_peaks(sol_full_l.y[0])
if len(peaks) >= 2:
    T_numerical = np.mean(np.diff(sol_full_l.t[peaks]))
    T_linear = 2 * np.pi * np.sqrt(L_pend / g_pend)
    print(f"\nLinear period:    T₀ = {T_linear:.4f} s")
    print(f"Nonlinear period: T  = {T_numerical:.4f} s  (θ₀ = {np.degrees(theta0_large):.0f}°)")
    print(f"Difference: {(T_numerical - T_linear)/T_linear * 100:.1f}% longer")

Linear period:    T₀ = 2.0061 s
Nonlinear period: T  = 3.3033 s  (θ₀ = 143°)
Difference: 64.7% longer
